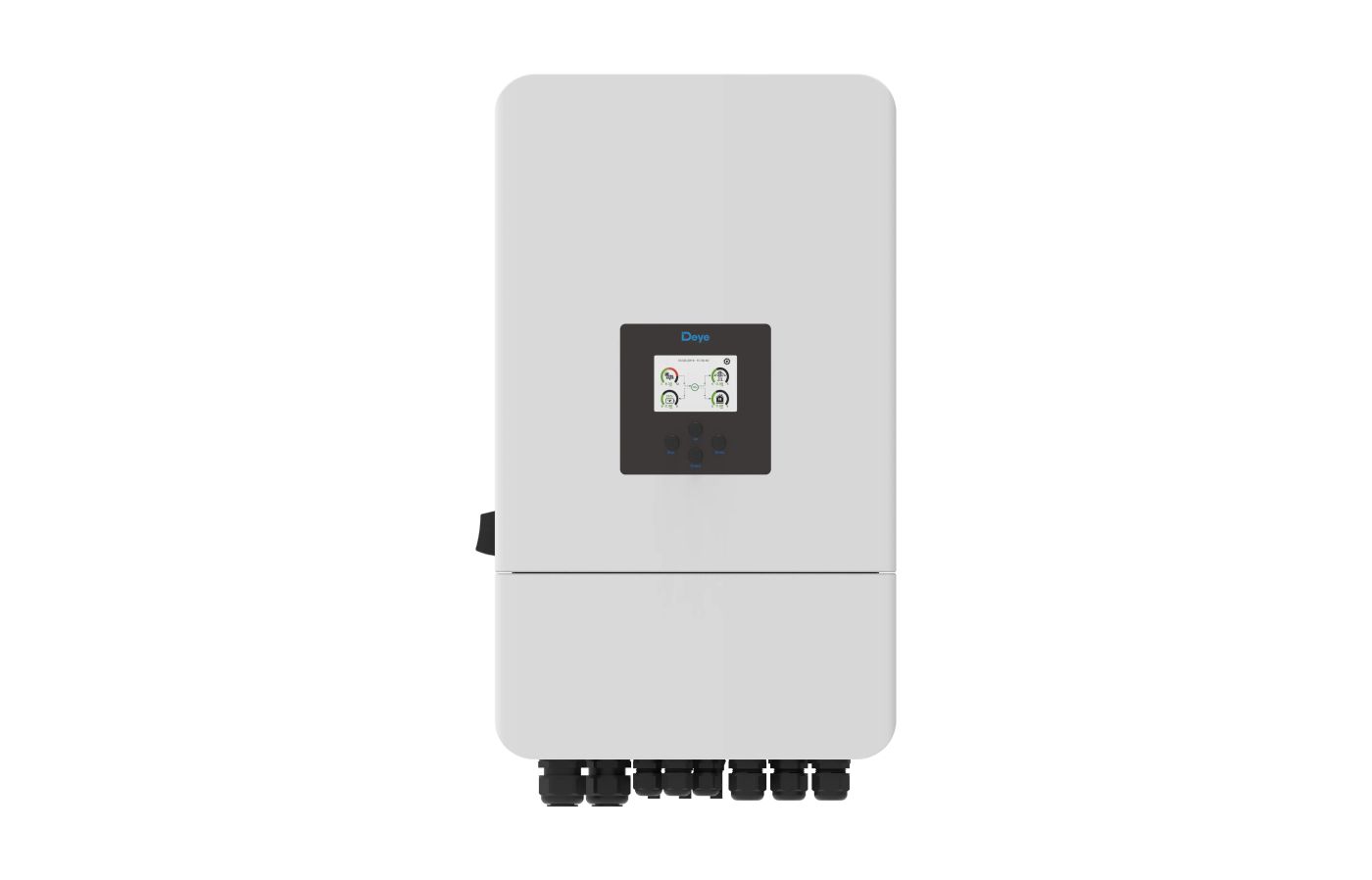

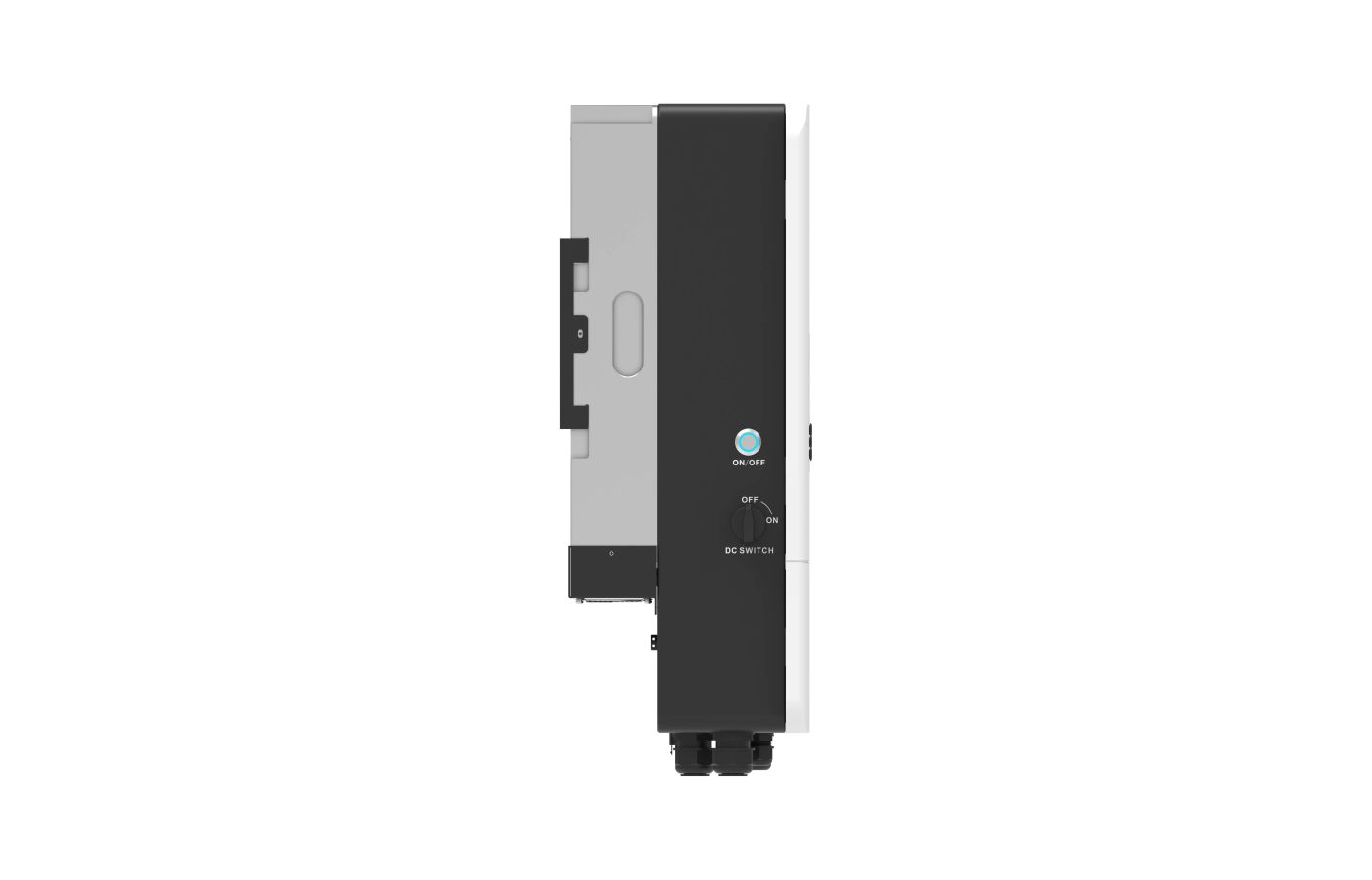

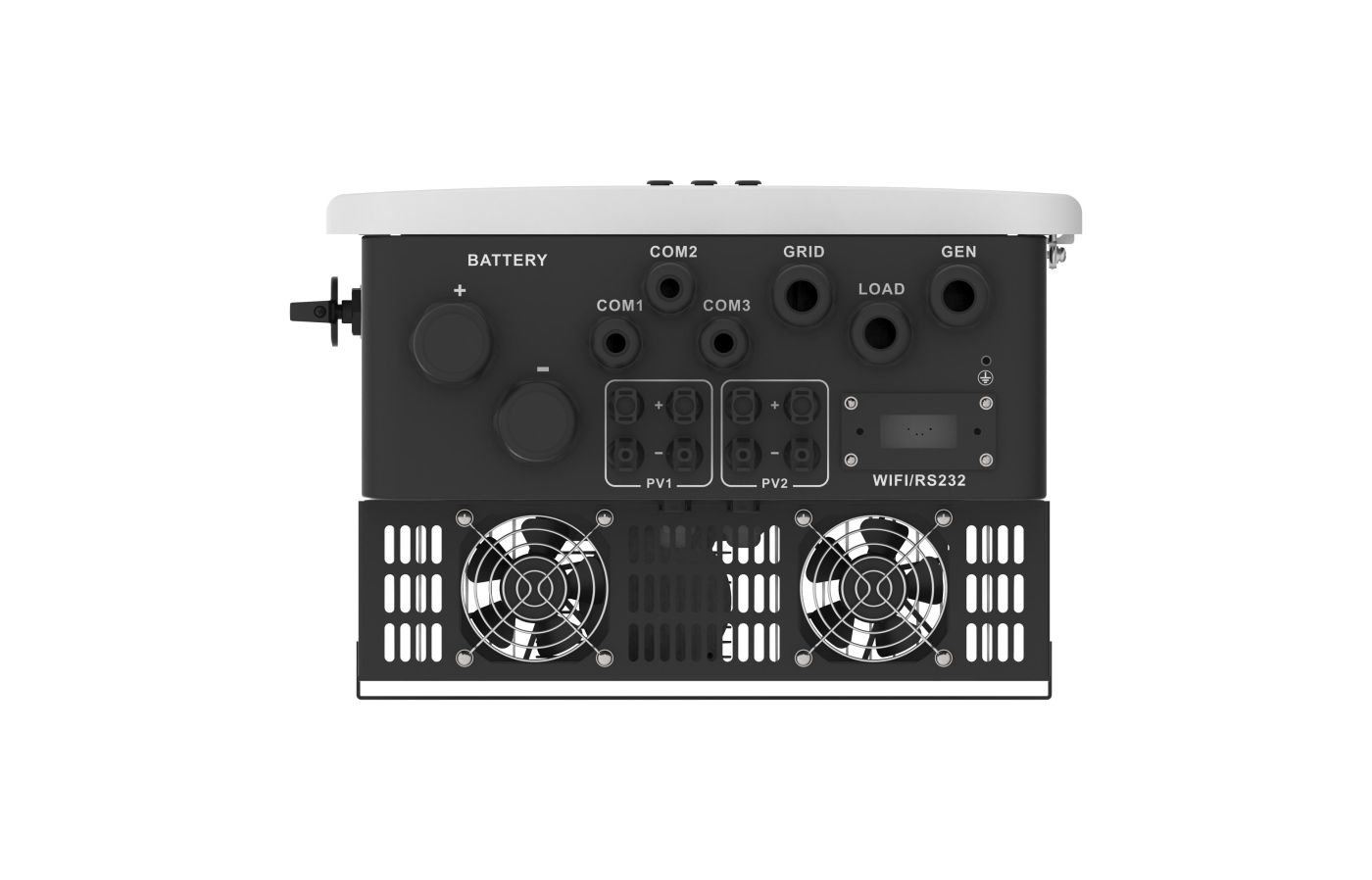

Deye 12kW SUN-12K-SG05LP3-EU Hybrid LV 3 phase inverter

Hibridni

Šifra: SUN-12K-SG05LP3-EU

Max. snaga: 24000 W
Raspon napona baterije: 200-650 V
Max. struja punjenja/pražnjenja: 240 A


Certifikati (klikni za pregled i preuzimanje):



Battery Input Data

  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range: 40–60 V
  • Max. Charging/Discharging Current: 240 A
  • Charging Strategy for Li-ion Battery: Self-adaption to BMS
  • Number of Battery Input: 1

PV String Input Data

  • Max. PV Access Power: 24,000 W
  • Max. PV Input Power: 19,200 W
  • Max. PV Input Voltage: 800 V
  • Start-up Voltage: 160 V
  • MPPT Voltage Range: 200–650 V
  • Rated PV Input Voltage: 550 V
  • Max. Operating PV Input Current: 26 + 26 A
  • Max. Input Short-Circuit Current: 39 + 39 A
  • No. of MPP Trackers / No. of Strings MPP Tracker: 2 / 2+2

AC Input/Output Data

  • Rated AC Input/Output Active Power: 12,000 W
  • Max. AC Input/Output Apparent Power: 13,200 VA
  • Rated AC Input/Output Current: 18.2 / 17.4 A
  • Max. AC Input/Output Current: 20 / 19.2 A
  • Max. Continuous AC Passthrough (Grid to Load): 45 A
  • Peak Power (Off-grid): 2 times of rated power, 10 s
  • Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
  • Rated Input/Output Voltage: 220/380 V, 230/400 V; 0.85Un–1.1Un; 3L+N+PE
  • Rated Input/Output Grid Frequency/Range: 50/45–55 Hz, 60/55–65 Hz
  • Total Current Harmonic Distortion THDi: <3% (of nominal power)
  • DC Injection Current: <0.5% In

Efficiency

  • Max. Efficiency: 97.6%
  • Euro Efficiency: 97.0%
  • MPPT Efficiency: >99%

Interface

  • LCD/LED Display: LCD
  • Communication Interface: WIFI, RS485, CAN

General Data

  • Operating Temperature Range: -40 to +60°C, >45°C Derating
  • Permissible Ambient Humidity: 0–100%
  • Permissible Altitude: 3,000 m
  • Noise: ≤55 dB
  • Ingress Protection (IP) Rating: IP65
  • Inverter Topology: Non-Isolated (solar), Isolated (battery)
  • Over Voltage Category: OVC II (DC), OVC III (AC)
  • Cabinet Size (W × H × D): 386 × 660 × 250 mm (Excluding Connectors and Brackets)
  • Weight: 35.2 kg
  • Type of Cooling: Intelligent Air Cooling
  • Warranty: 5 Years / Up to 10 Years*

Equipment Protection

  • Integrated: DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
  • Surge Protection Level: TYPE II (DC), TYPE II (AC)

Key Features

  • 48V Low Voltage Battery, Transformer Isolation Design
  • 6 Time Periods for Battery Charging/Discharging
  • AC Couple to Retrofit Existing Solar System
  • Max. 10 pcs Parallel for On-grid and Off-grid Operation
  • Support Multiple Batteries Parallel
  • Support Storing Energy from Diesel Generator
  • 100% Unbalanced Output, Max. Output up to 50% Rated Power for Each Phase

Min. količina za narudžbu: 1
